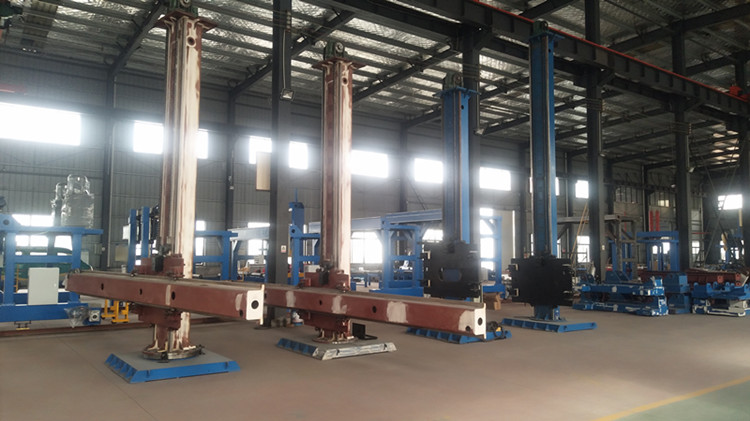

Automatic Pipe column and boom welding manipulator with flux recovery
The welding manipulator cooperates with the roller frame and positioning to weld the inner and outer circular seams, corner seams, and inner and outer longitudinal seams of the workpiece. According to the specific needs of customers, users can choose various auxiliary devices such as various structures, welding machines, tracking, swinging, monitoring, flux recovery, and transmission. In addition, we can also design and manufacture the exact type that suits the user.
Specifications:
| Model | HJ2020 | HJ3030 | HJ3040 | HJ4050 | HJ5060 | HJ6060 | HJ7070 | HJ8080 |
| Effective arm extension stroke m | 2-3 | 3-5 | 4-6 | 4-7 | 4-8 | 4-9 | 7-9 | 4-10 |
| Effective arm vertical stroke m | 2 | 3 | 3 | 4 | 5 | 6 | 7 | 8 |
| Arm extension speed mm/min | 120-1200 AC frequency converter stepless speed adjustment |
| Arm elevation speed mm/min | 500 | 1000 |
| Column rotary angle ° | ±180 by manual |
| Arm end load kg | 100 | 200 |
| Vehicle travel speed mm/min | 2000 |
| Vehicle slide center distance mm | 1200 | 1560 |
| Cross shape adjusting unit mm | up and down 100, left and right:100 |
Structure: fixed type, fixed rotating (manual) type, mobile rotating type.
Function: Effective extension and lifting of the cross arm. The welding head can be adjusted up, down, left and right. The column turns and the vehicle moves.
Operation accuracy of cross arm: ≤1mm/1000m.
Optional welding machine: automatic SAW, CO2 MAG/MIG, TIG welding machine.
Optional functions: flux recovery conveyor, video surveillance, weld swing, automatic tracking, arc length control, worker platform.
Equipment composition of HJ2020welding manipulator
1, HJ6060 type welding machine (moving type): 1 set
2, Mobile trolley walking parts 1 set
3, MZ-1000 automatic submerged arc welding machine 1 set

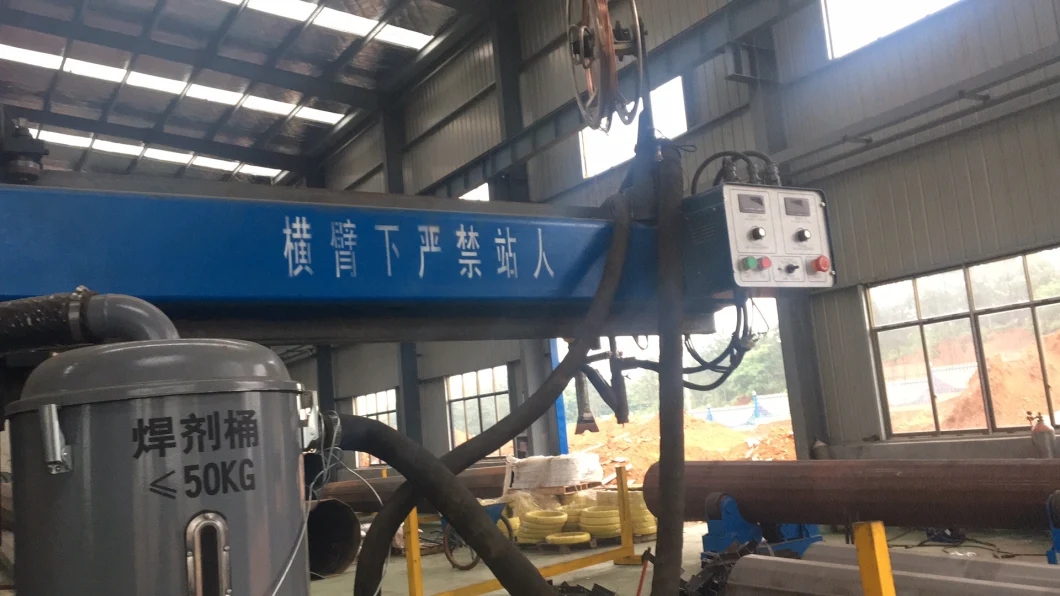

4, flux recovery conveyor integrated machine 1 set
5, electrical control part
MZ-1000 submerged arc welding machine
| MZ-1000 submerged arc welding machine |
| No. | Name | Unit | MZ-1000 |
| 1 | output characteristics | | Drop feature |
| 2 | The power input voltage/frequency | Hz | three phase 380V±10%/50 |
| 3 | output rating | kW | 44 |
| 4 | Rated power current | A | 83 |
| 5 | Rated Duty Cycle | | 100% |
| 6 | Current Adjustment Range | A | 60-1000 |
| 7 | voltage setting range | V | 20-50 |
| 8 | Output noload voltage | V | Submerged arc welding:90±10
manual metal-arc welding:75±5 |
| 9 | full load efficiency | | 92% |
| 10 | Full load efficiency | | 0.88 |
| 11 | Diameter of Welding Wire | mm | 2-5 |
| 12 | wire feed speed | cm/min | 40-450 |
MZ-1000 submerged arc welding machine
| MZ-1000 submerged arc welding machine |
| No. | Name | Unit | MZ-1000 |
| 1 | output characteristics | | Drop feature |
| 2 | The power input voltage/frequency | Hz | three phase 380V±10%/50 |
| 3 | output rating | kW | 44 |
| 4 | Rated power current | A | 83 |
| 5 | Rated Duty Cycle | | 100% |
| 6 | Current Adjustment Range | A | 60-1000 |
| 7 | voltage setting range | V | 20-50 |
| 8 | Output noload voltage | V | Submerged arc welding:90±10
manual metal-arc welding:75±5 |
| 9 | full load efficiency | | 92% |
| 10 | Full load efficiency | | 0.88 |
| 11 | Diameter of Welding Wire | mm | 2-5 |
| 12 | wire feed speed | cm/min | 40-450 |
Flux recovery delivery all-in-one machine
| Flux recovery delivery all-in-one machine |
| NO. | Name | Unit | MZ-1000 |
| 1 | Model | | YS-HS150A |
| | Motor power | KW | 4 |
| 2 | Bleed pressure | MPa | 0.2-0.8 |
| 3 | The largest recycled | KG | 80 |
| 4 | Vacuum degree | KPa | 14.4
|
